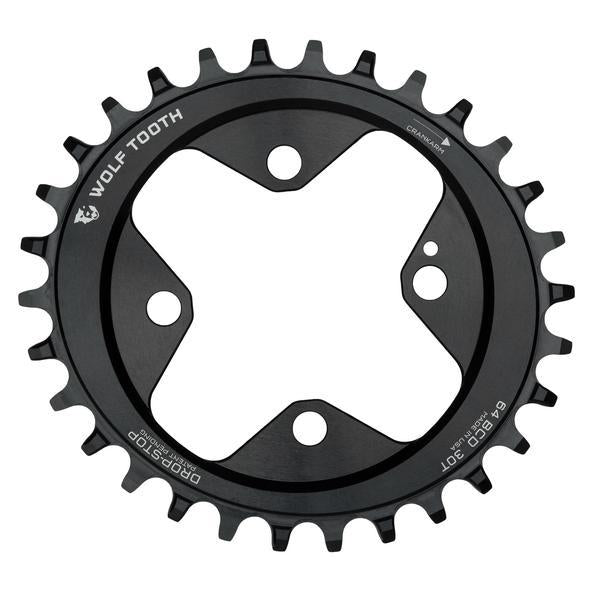

Product Description
- These rings fit any crankset that has a 64 BCD "small ring" position. This includes standard 104 BCD cranksets, the M960 Shimano XTR crankset, the 96 BCD Triple cranksets (e.g. M782) and some others.
- For 1x9, 1x10, 1x11 and 1x12 drivetrains (including SRAM Eagle)
Compatible with all 10, 11, and 12-speed chains except Shimano 12-speed chains.
If using a 9-speed drivetrain use a 10-speed chain (shifts and works well on a 9-speed drivetrain and fits the ring tighter for better chain retention).
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- Chainline (approximate as BB centering and cranksets vary) - 47mm on a triple and 48mm on a double crankset
- Ovality of 10% and timing of 112° after TDC (top dead center)
- Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is adequate chainstay clearance!)
